Tech Tip: How flex shaft components impact rotary power transmission

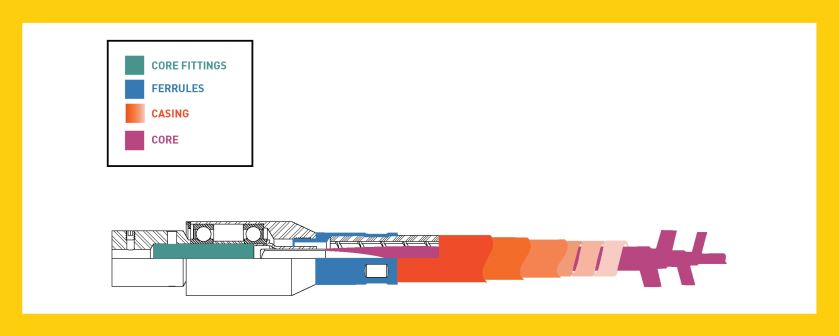

The primary components of a flexible drive shaft are: core, core fittings, casing and ferrules. Each component is precision engineered and meticulously crafted to ensure Elliott flex shafts enhance your equipment’s rotary power transmission, improving performance and efficiency.
Learn how these components contribute to ideal rotary power transmission:
- Core: The flexible drive shaft core supports up to 10 horsepower and 30,000 rpm. Sizes range from 0.125 to 1.625 inches and are determined by the load and rpm transmitted through the flex shaft.
- Core fittings: To join driving and driven elements, machined or formed components, known as fittings, attach to the core ends. Infinite designs are available to best connect with your power source.
- Casing: The flexible conduit or casing protects and supports the flex shaft core during operation and prevents helixing during power transmission. Elliot’s range of casing designs prolong the life of the flex shaft in changing environmental conditions.
- Ferrules: To support the uniform bend of a flex shaft and prevent casing rotation, terminals or ferrules are attached at the end of the casing.
Optional features:
- Couplings: In addition to the fittings and ferrules, optional sockets or couplings at each end of a flex shaft engage your equipment’s mating components. Elliott offers a range of sizes which include plain bored or specially designed couplings to provide the ideal connection.
The unique components that make up Elliott’s flex shaft design ensure that it:
- Transmits rotary power in one or both directions
- Easily withstands the shock of sudden load changes
- Allows for a high degree of freedom in mounting drive units
- Reduces weight and alignment issues
What can you adapt with a flex shaft?
See the versatility of our power transmission technology for yourself. Request a free sample of our core material and consider what you could adapt with a flex shaft when you see how it can bend, turn, twist and move. Our sales and product management teams can answer your specific questions.
No matter the industry, whatever the challenge, Elliott can deliver the power. We’ll help you turn the corner and make the connection. Visit our products page to learn more about flex shaft applications.
